Drive heavy-duty industrial motors and robust power switching applications with the Schneider Electric TeSys D LC1D50A magnetic contactor. Engineered for superior operational reliability and high electrical endurance, this 3-pole contactor handles up to 50A (AC-3) operational currents and features integrated auxiliary contacts for seamless control circuit integration.
MAGNETIC CONTACTOR, SCHNEIDER
Order Now
LC1D50A

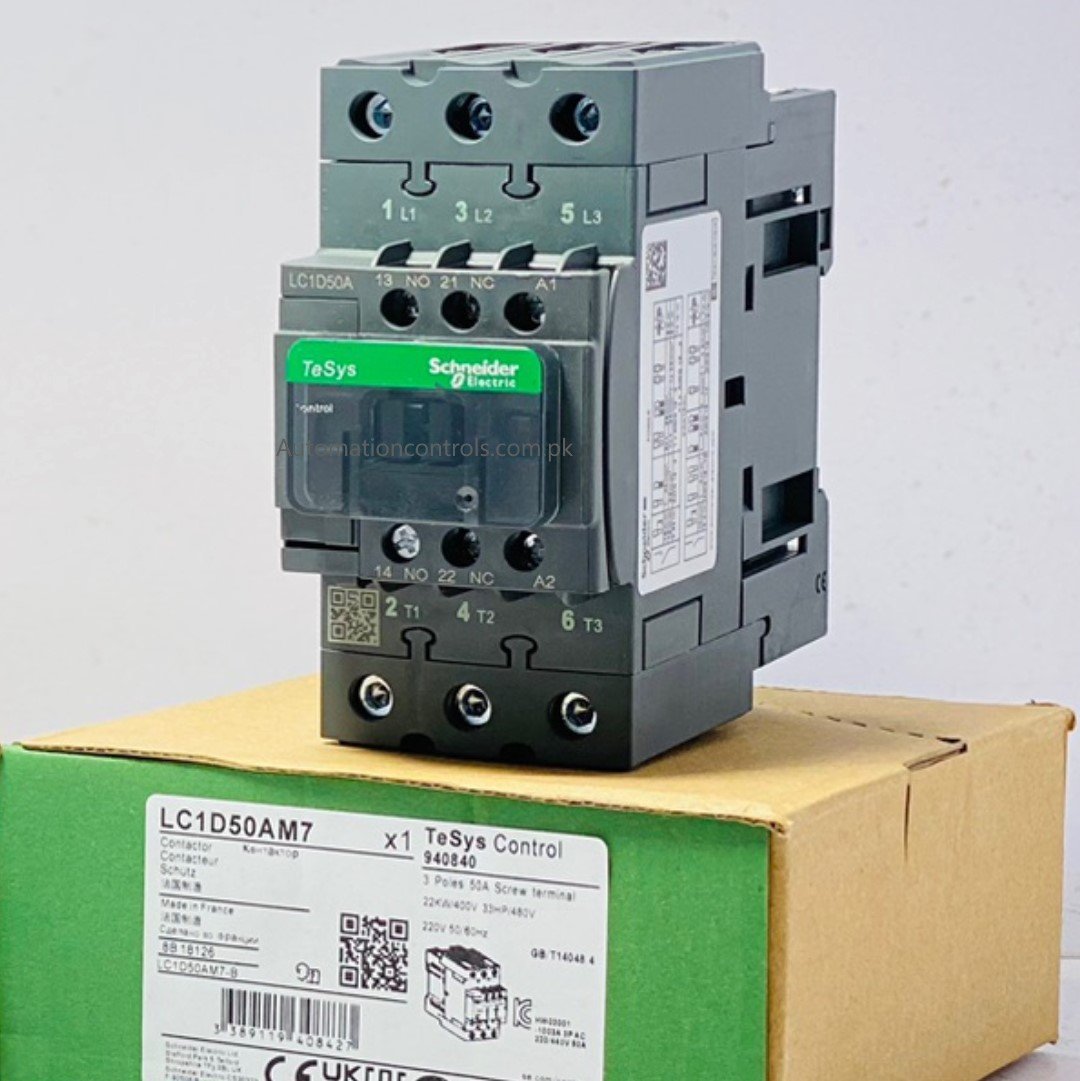

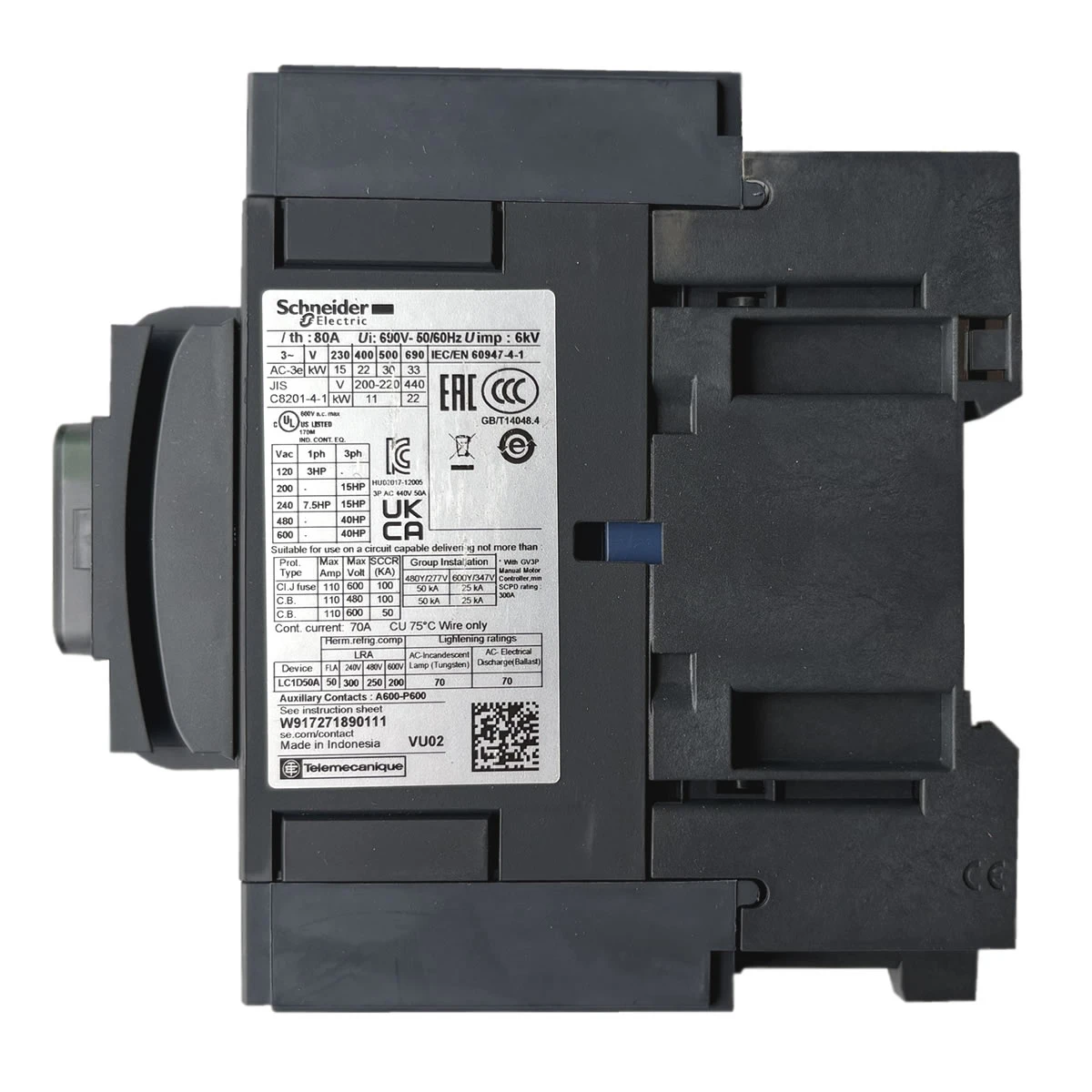

Schneider Electric TeSys D 3-Pole Magnetic Contactor LC1D50A – 50A (AC-3) with Built-in Auxiliary Contacts
-
Number of Poles: 3P (3 Main Power Poles)
-
Rated Operational Current ($I_e$): 50 A (at $\le$ 440 V AC-3), 80 A (at $\le$ 440 V AC-1)
-
Rated Operational Voltage ($U_e$): Up to 690V AC for power circuit
-
Rated Insulation Voltage ($U_i$): 690V conforming to IEC 60947-4-1
-
Mechanical Durability: 3 million operating cycles
-
Electrical Durability: 1 million cycles at AC-3 / 800,000 cycles at AC-1
-
Standards Compliance: IEC 60947-4-1, EN 60947-4-1, UL, CSA, and CE certified
