Drive motor performance and heavy-duty switching applications with the Schneider Electric TeSys D LC1D18 magnetic contactor. Engineered for robust industrial reliability, this 3-pole contactor handles up to 18A (AC-3) operational currents and features integrated auxiliary contacts (1NO + 1NC) for seamless control panel integration.
MAGNETIC CONTACTOR, SCHNEIDER
Order Now
LC1D18

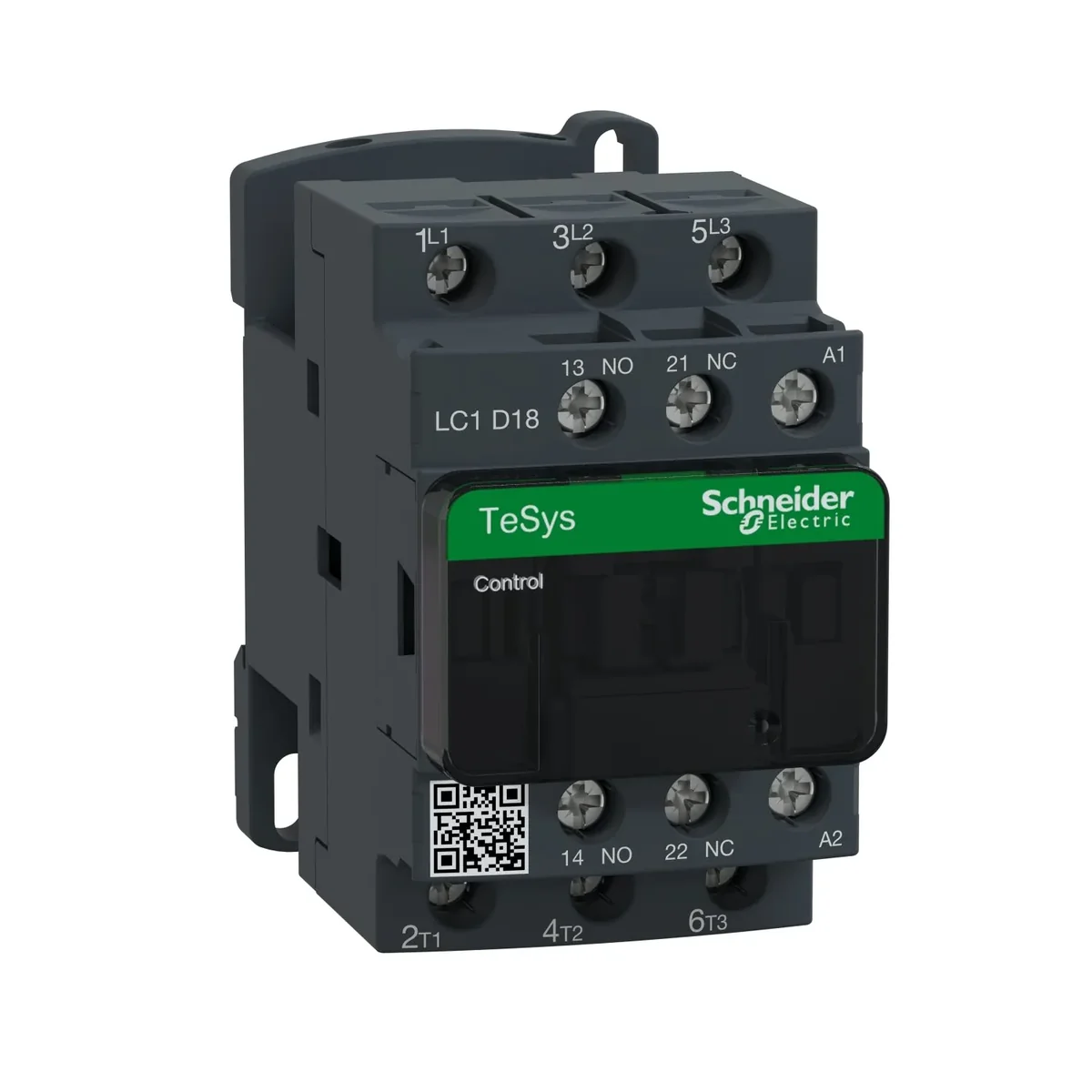

Schneider Electric TeSys D 3-Pole Magnetic Contactor LC1D18 – 18A (AC-3) with 1NO + 1NC Auxiliary Contacts
-
Number of Poles: 3P (3 Main Power Poles)
-
Rated Operational Current ($I_e$): 18 A (at $\le$ 440 V AC-3), 32 A (at $\le$ 440 V AC-1)
-
Rated Operational Voltage ($U_e$): Up to 690V AC for power circuit
-
Rated Insulation Voltage ($U_i$): 690V conforming to IEC 60947-4-1
-
Auxiliary Contact Composition: 1 NO + 1 NC
-
Mechanical Durability: 15 million operating cycles
-
Electrical Durability: 2 million cycles at AC-3 / 800,000 cycles at AC-1
-
Standards Compliance: IEC 60947-4-1, EN 60947-4-1, UL, CSA, and CE certified
