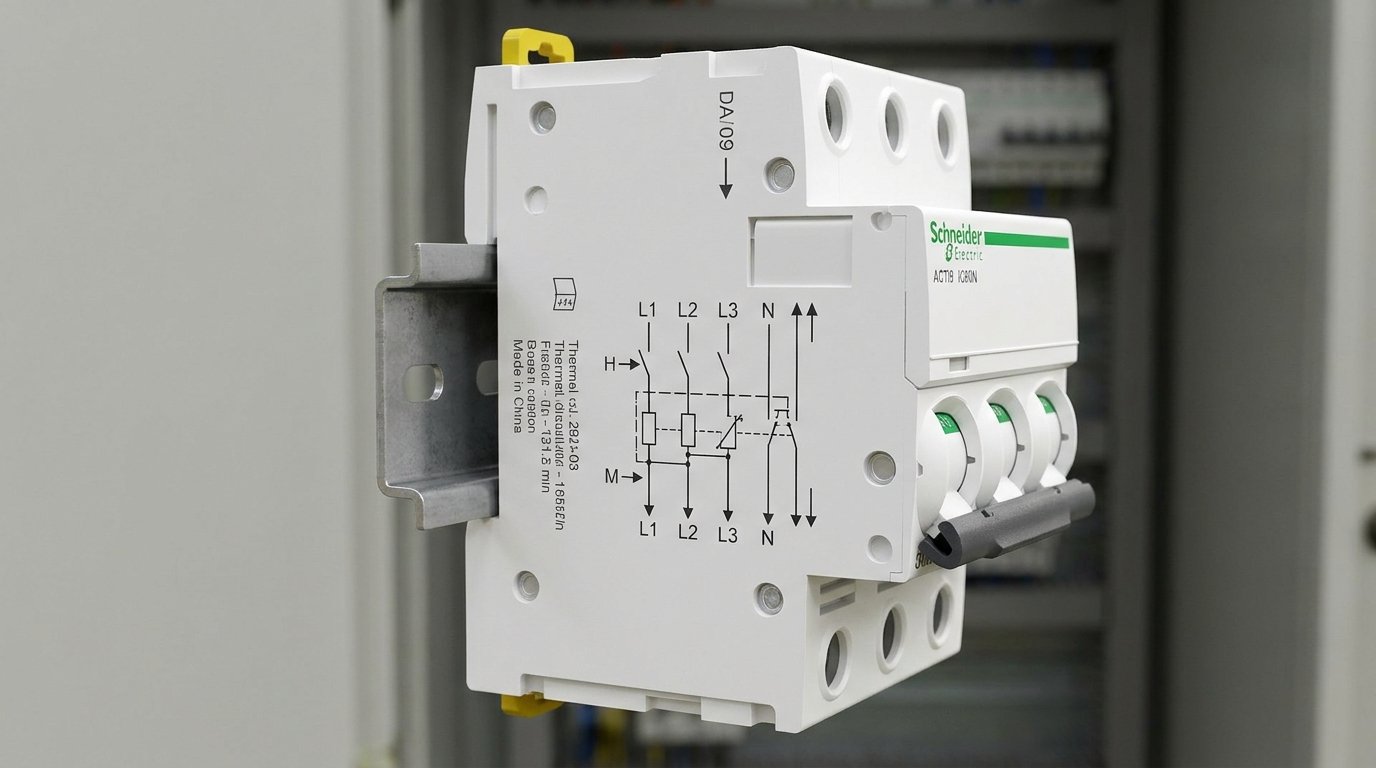

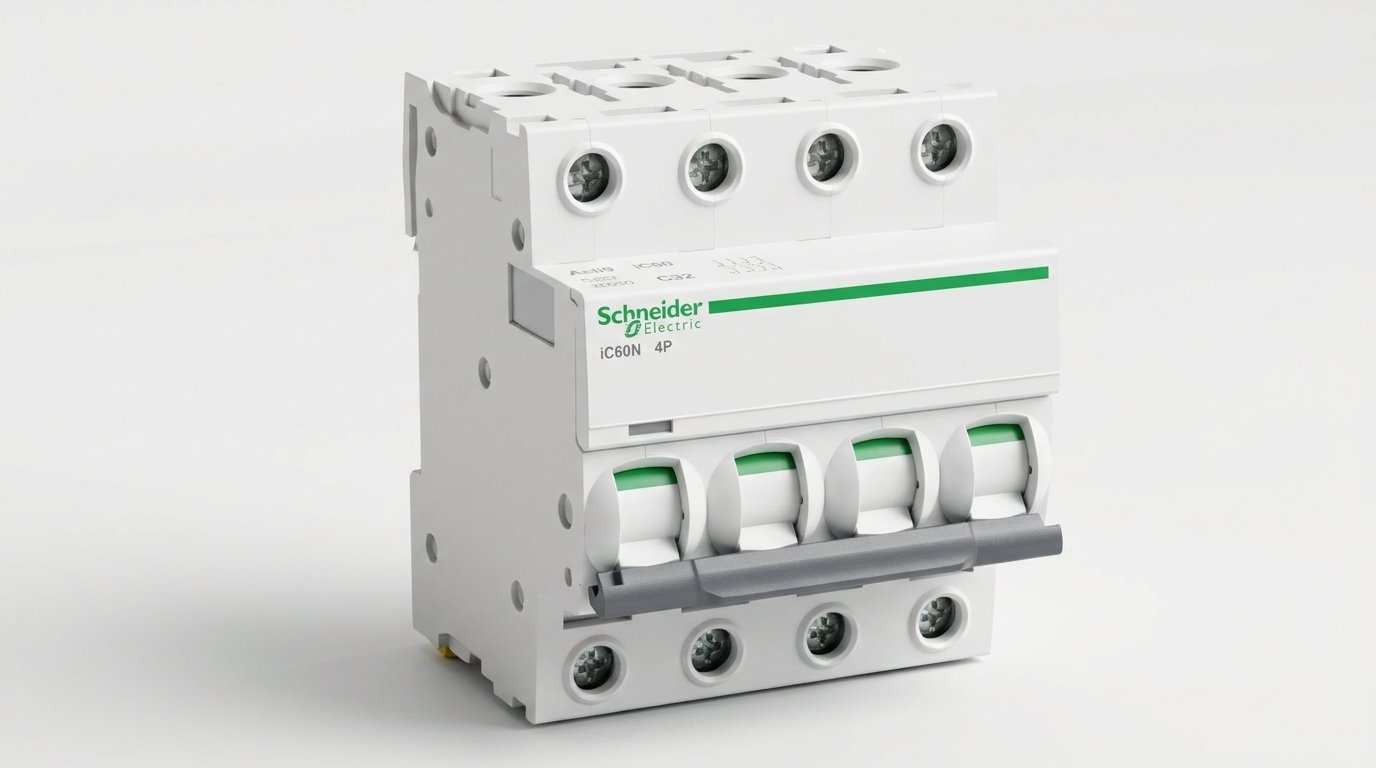

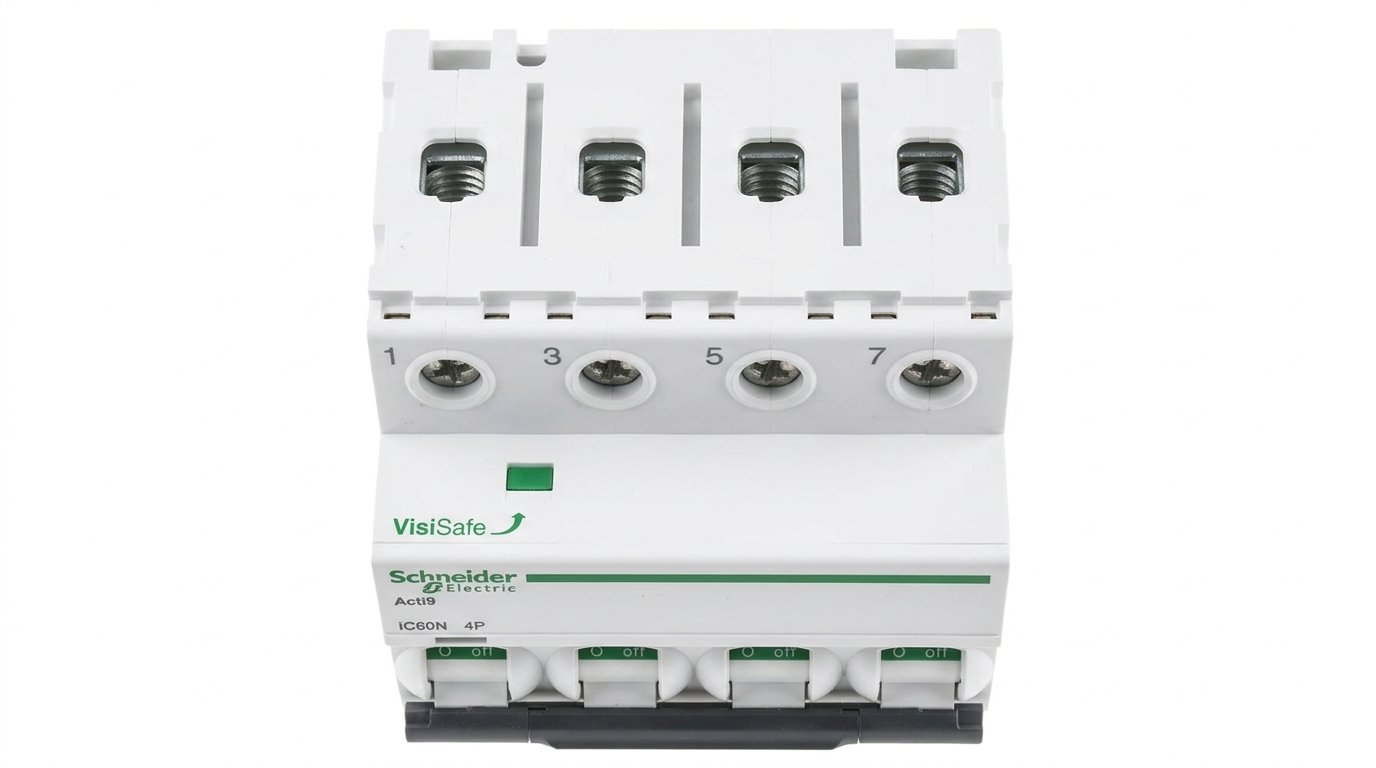

Provide robust four-pole electrical isolation and complete three-phase-plus-neutral protection with the Schneider Electric Acti9 iC60N 4-Pole MCB. Engineered for heavy-duty commercial and industrial power distribution, this DIN rail-mounted circuit breaker delivers dependable short-circuit and overload defense. Available across all standard current ratings from 6A to 63A with B, C, and D tripping curves.
Circuit Breaker, MCB BREAKER, Schneider
Order Now
IC60N 4POLE
MINATURE CIRCUIT BREAKER IC60N 4POLE SCHNEIDER
-
Number of Poles: 4P (4 Poles / Three-Phase + Neutral)
-
Network Type: AC
-
Rated Operational Voltage ($U_e$): 400V – 415V AC
-
Complete Amperage Range: Fully available in standard current ratings: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A.
-
Tripping Curves: Offered in B-Curve (sensitive resistive load protection), C-Curve (standard commercial and inductive loads), and D-Curve (high inrush current industrial equipment like transformers and motors).
-
Breaking Capacity: Rated for high performance with 6000 A (IEC/EN 60898-1) and up to 10 kA (IEC/EN 60947-2) breaking capacities at 400V–415V AC.
