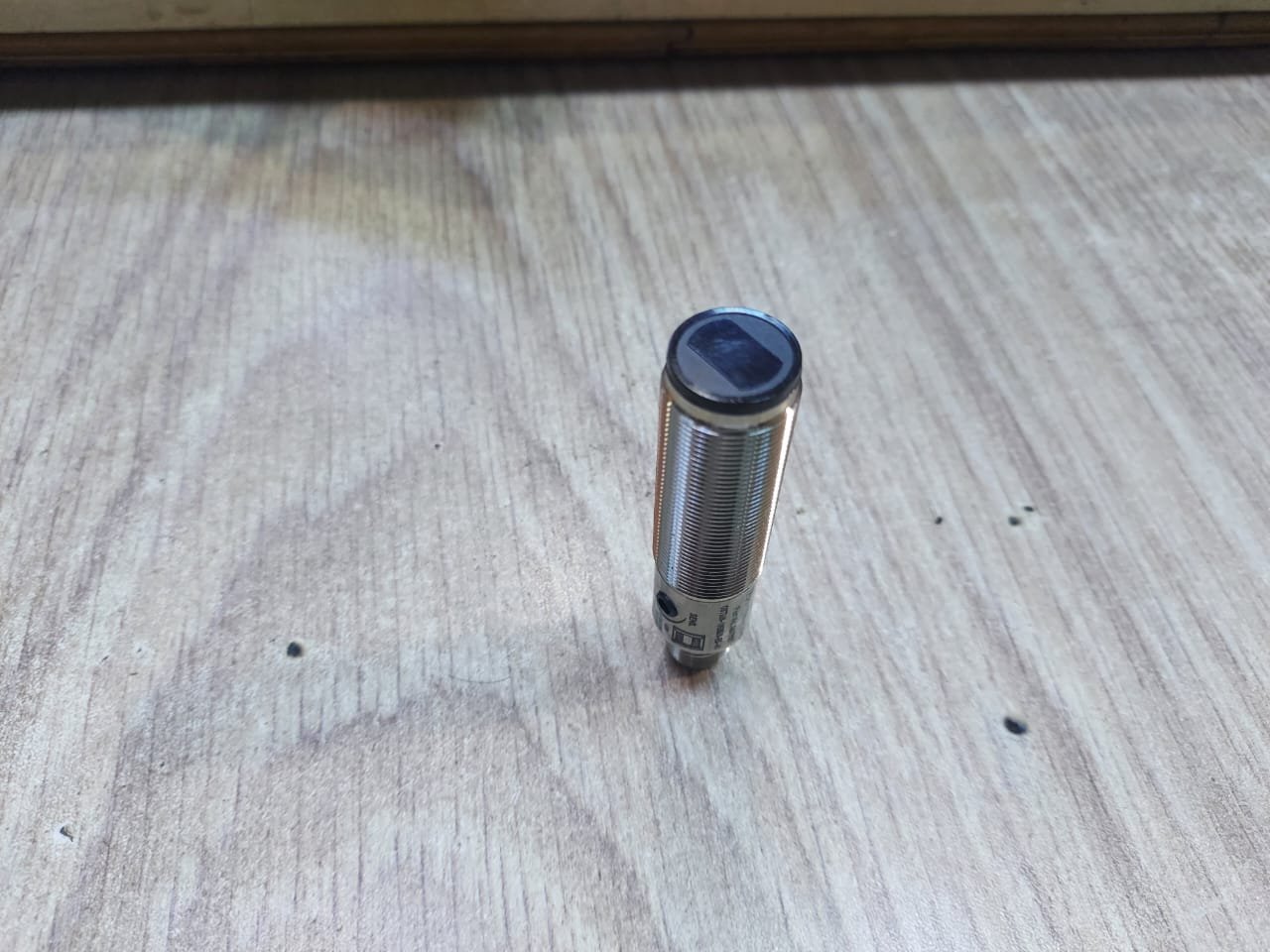

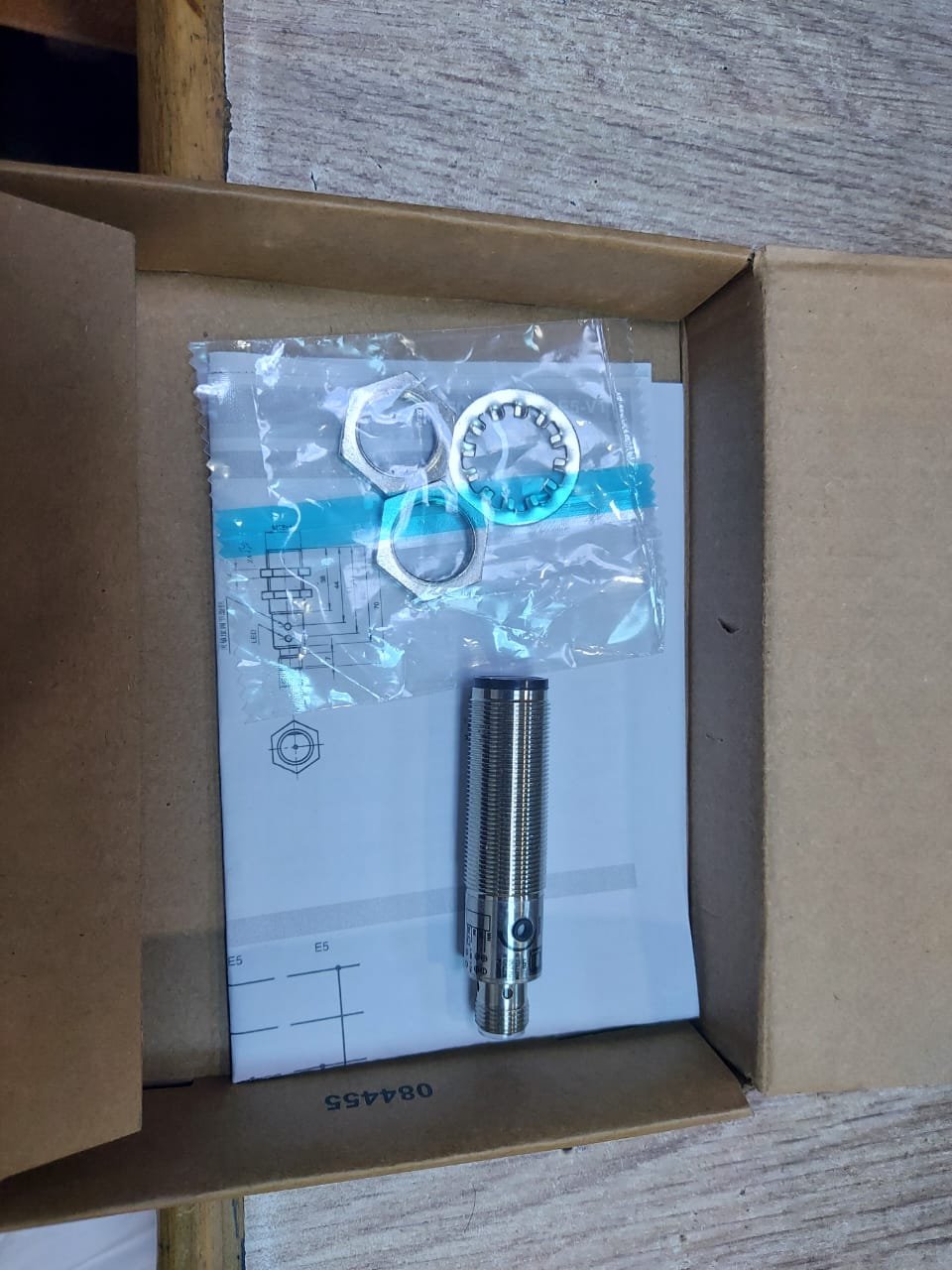

The Pepperl+Fuchs OBT500-18GM60-E5-V1 is a high-performance diffuse mode photoelectric sensor designed for precise object detection and reliable automation performance. Built with nickel-plated brass housing and an IP67 protection rating, this sensor delivers durability and stability in demanding industrial environments.
General Specifications
- Manufacturer: Pepperl+Fuchs
- Model: OBT500-18GM60-E5-V1
- Sensing Method: Diffuse mode photoelectric sensor
- Sensing Range: 0 to 500 mm
- Output Type: PNP, open collector
- Operating Voltage: 10–30 VDC
- Light Source: Infrared LED (IRED), 880 nm wavelength
- Mechanical & Environmental Specifications
- Housing Design: M18 x 1 cylindrical, nickel-plated brass
- Optical Face: Durable polycarbonate (PC)

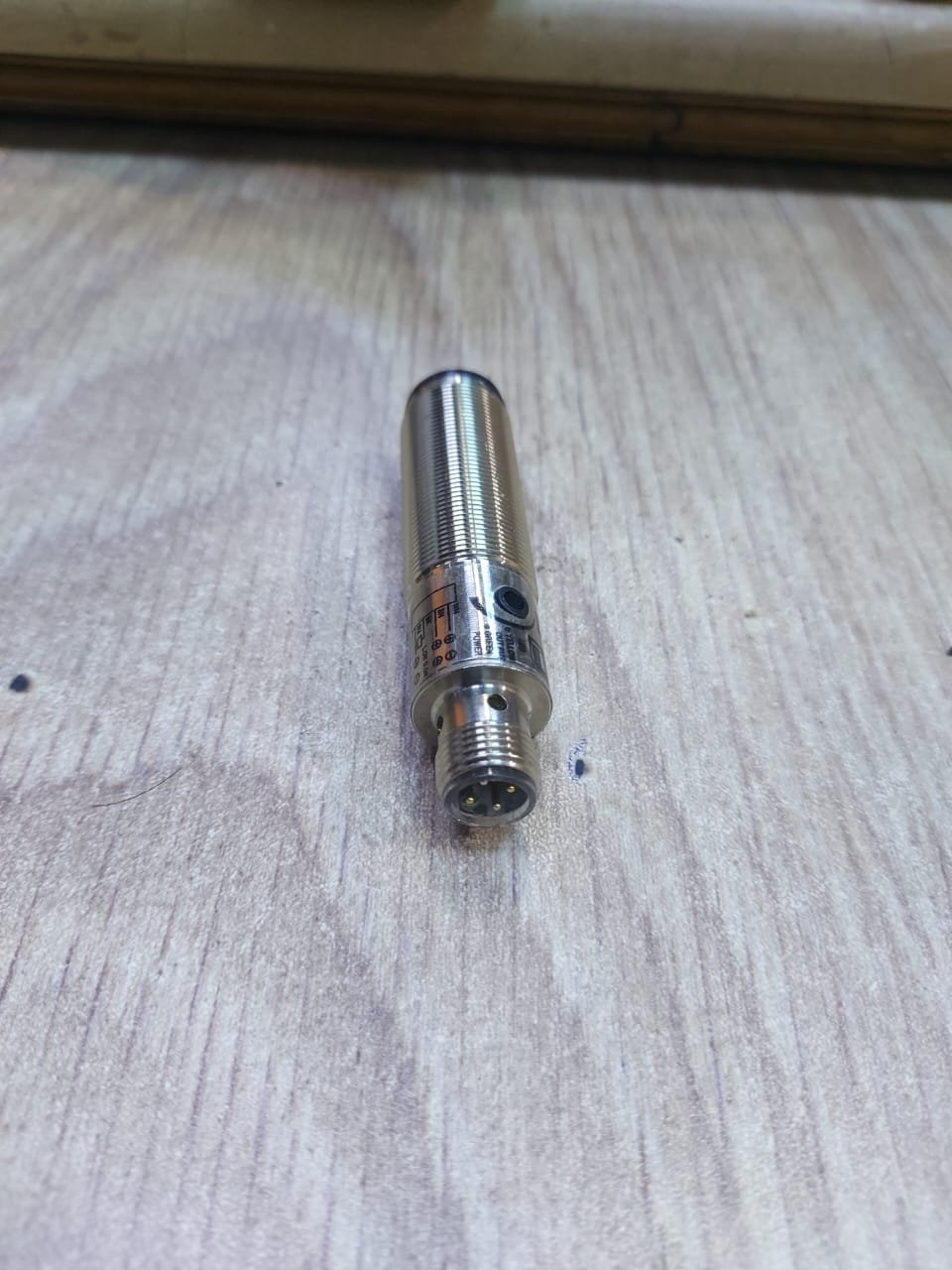

- Connection Type: 4-pin M12 x 1 connector
- Protection Rating: IP67 – dustproof and water-resistant
- Operating Temperature Range: -25°C to +55°C
- Features & Performance
- Adjustable Sensitivity: Easily fine-tune the operating distance for optimal performance
- LED Indicators: Dual-color LED (green for power, yellow for output status)
- Switching Frequency: Up to 500 Hz for fast response
- Light/Dark Switching: Electrically switchable
- Electrical Protection: Short-circuit and reverse polarity protection
- Ambient Light Immunity: Resistant to ambient light up to 10,000 Lux
- Key Benefits
- Reliable detection for industrial automation systems
- Compact and rugged design ideal for harsh environments
- Quick installation with standard M12 connector
- High switching frequency for fast-moving objects
- Ideal for: Object detection, packaging machinery, conveyor systems, and automation control applications.
- Available in Lahore, Pakistan, exclusively through trusted industrial suppliers — get genuine Pepperl+Fuchs products
